Terminology in SQL

We've just released Pathling 10.0.0 and Pathling server 3.1.0. The main new feature in both is support for Terminology in SQL, a part of the SQL on FHIR specification that lets a SQL query use value sets and concept maps as ordinary tables.

Why tables?

Most analyses of FHIR data need to ask a terminology question at some point. "Which patients have had a myocardial infarction?" is a question about value set membership. "What is the ICD-10 code for each of these diagnoses?" is a question about translation through a concept map.

Pathling has been able to answer these questions for some time, through the memberOf and translate FHIRPath functions and their equivalents in the Python, R and Java libraries. These functions work well and they scale to very large datasets, but they are specific to Pathling. A SQL query that calls member_of will not run on any other SQL on FHIR implementation. On the server, Pathling's own functions are not permitted within SQL at all, so the only way to use terminology within a SQLQuery was to compute it ahead of time as a column of a ViewDefinition.

The SQL on FHIR specification takes a different approach. It defines two tables with fixed columns: one holding the members of a value set, and one holding the mappings within a concept map. A query declares the value set or concept map that it needs, and the implementation supplies the content under a name that the query can join to. Because the tables are the same everywhere, the SQL is too.

A value set table has one row per member:

Column	Content
system	The code system of the member
version	The code system version, where known
code	The member code
display	The display text for the code
inactive	true where the code is known to be inactive

A concept map table has one row per mapping, with source_system, source_version, source_code and source_display on one side, target_system, target_version, target_code and target_display on the other, and a relationship column that describes how the two are related. The relationship uses the R5 ConceptMapRelationship codes. Pathling holds R4 resources, so the R4 equivalence is converted, e.g. narrower becomes source-is-broader-than-target.

A table also gives you things that a boolean function cannot. You can bring the display text of the matching member alongside your data, filter on inactive, translate in the reverse direction by joining on the target columns, and combine membership and translation with any other join in the same query.

Using it from the libraries

PathlingContext has four new methods that return a value set or concept map as a Spark DataFrame. Register the DataFrame as a view, and SQL can join to it under that name.

Python	R	Java and Scala
value_set	pathling_value_set	valueSet
value_set_from_json	pathling_value_set_from_json	valueSetFromJson
concept_map	pathling_concept_map	conceptMap
concept_map_from_json	pathling_concept_map_from_json	conceptMapFromJson

Here is an example that projects some Conditions into a table using a view definition, and then finds the ones that are a type of myocardial infarction using a SNOMED CT ECL value set:

from pathling import PathlingContext, to_ecl_value_set

pc = PathlingContext.create()
data = pc.read.ndjson("/data/fhir")

data.view(
    "Condition",
    select=[
        {
            "column": [
                {"name": "patient_id", "path": "subject.getReferenceKey(Patient)"},
                {"name": "system", "path": "code.coding.first().system"},
                {"name": "code", "path": "code.coding.first().code"},
            ]
        }
    ],
).createOrReplaceTempView("conditions")

pc.value_set(
    to_ecl_value_set("<< 22298006 |Myocardial infarction|")
).createOrReplaceTempView("mi_codes")

pc.spark.sql("""
    SELECT conditions.patient_id, conditions.code, mi_codes.display
    FROM conditions
    JOIN mi_codes
      ON mi_codes.system = conditions.system
     AND mi_codes.code = conditions.code
    ORDER BY conditions.patient_id
""").show(truncate=False)

+----------+---------+------------------------------------------------+
|patient_id|code     |display                                         |
+----------+---------+------------------------------------------------+
|Patient/p1|22298006 |Myocardial infarction                           |
|Patient/p3|401303003|Acute ST segment elevation myocardial infarction|
+----------+---------+------------------------------------------------+

Where you only need to know whether a code is a member, a semi-join (WHERE EXISTS) is the safer choice. A value set can hold the same code under more than one version of a code system, and an inner join on system and code would then return the row twice.

Translation uses a LEFT JOIN, so that codes the map does not translate are kept. This example reads a concept map from a JSON file. It maps three of the four codes to ICD-10, and states that the fourth (asthma) has no mapping:

with open("sct-to-icd10.ConceptMap.json") as f:
    pc.concept_map_from_json(f.read()).createOrReplaceTempView("sct_to_icd10")

pc.spark.sql("""
    SELECT conditions.patient_id,
           conditions.code,
           sct_to_icd10.target_code,
           sct_to_icd10.relationship
    FROM conditions
    LEFT JOIN sct_to_icd10
      ON sct_to_icd10.source_system = conditions.system
     AND sct_to_icd10.source_code = conditions.code
     AND (sct_to_icd10.relationship IS NULL
          OR sct_to_icd10.relationship <> 'not-related-to')
    ORDER BY conditions.patient_id
""").show(truncate=False)

+----------+---------+-----------+-----------------------------+
|patient_id|code     |target_code|relationship                 |
+----------+---------+-----------+-----------------------------+
|Patient/p1|22298006 |I21        |equivalent                   |
|Patient/p2|73211009 |E14        |source-is-broader-than-target|
|Patient/p3|401303003|I21.3      |equivalent                   |
|Patient/p4|195967001|NULL       |NULL                         |
+----------+---------+-----------+-----------------------------+

The relationship test sits in the ON clause rather than in WHERE, because in WHERE it would also remove the rows that the LEFT JOIN was written to keep. It admits null because a row stating that there is no mapping has no relationship.

The content of a value set or concept map is fetched once, when the DataFrame is created, and held within it. Every use of the DataFrame sees the same content, no matter how many times the query is evaluated.

See the terminology in SQL documentation for examples in R, Scala and Java.

Using it on the server

On the server, a SQLQuery or SQLView declares a value set or concept map as a relatedArtifact dependency, in exactly the same way that it declares a view. The label is the name that the SQL uses:

"relatedArtifact": [
    {
        "type": "depends-on",
        "label": "conditions",
        "resource": "https://example.org/ViewDefinition/conditions"
    },
    {
        "type": "depends-on",
        "label": "mi_codes",
        "resource": "http://snomed.info/sct?fhir_vs=isa/22298006"
    },
    {
        "type": "depends-on",
        "label": "sct_to_icd10",
        "resource": "http://example.org/ConceptMap/sct-to-icd10|2026"
    }
]

The SQL within the Library never names a canonical URL or a terminology server. This query combines both kinds of terminology, keeping only exact translations:

SELECT conditions.patient_id,
       conditions.code,
       mi_codes.display,
       sct_to_icd10.target_code AS icd10_code
FROM conditions
JOIN mi_codes
  ON mi_codes.system = conditions.system
 AND mi_codes.code = conditions.code
LEFT JOIN sct_to_icd10
  ON sct_to_icd10.source_system = conditions.system
 AND sct_to_icd10.source_code = conditions.code
 AND sct_to_icd10.relationship = 'equivalent'
ORDER BY conditions.patient_id

A value set or concept map that the server cannot resolve can be supplied with the request, through the context parameter. Here the concept map is supplied inline, and the value set is expanded by the terminology server:

curl -X POST 'http://localhost:8080/fhir/$sql-run' \
  -H 'Content-Type: application/fhir+json' \
  -d '{
    "resourceType": "Parameters",
    "parameter": [
      {
        "name": "subjectReference",
        "valueReference": { "reference": "Library/mi-icd10" }
      },
      {
        "name": "context",
        "resource": {
          "resourceType": "ConceptMap",
          "url": "http://example.org/ConceptMap/sct-to-icd10",
          "version": "2026",
          "...": "..."
        }
      },
      { "name": "_format", "valueCode": "csv" }
    ]
  }'

patient_id,code,display,icd10_code
Patient/p1,22298006,Myocardial infarction,I21
Patient/p3,401303003,Acute ST segment elevation myocardial infarction,I21.3

Every value set and concept map is resolved once, before any SQL runs, and the server logs where each one came from. This is what was logged for the request above:

Resolved value set 'http://snomed.info/sct?fhir_vs=isa/22298006' (version none) from https://tx.ontoserver.csiro.au/fhir: 135 members; expansion urn:uuid:ff2298ba-b0a8-4a14-a437-8cc981843d66 at 2026-10-21T21:29:22+10:00; code systems [http://snomed.info/sct|http://snomed.info/sct/32506021000036107/version/20260930]
Resolved concept map 'http://example.org/ConceptMap/sct-to-icd10' (version 2026) from context: 4 mappings

This means that a result can always be traced back to the terminology content it was computed against. In $sql-export, the content is fetched at kick-off and fixed for the life of the job, so every output in the job sees the same membership and mappings.

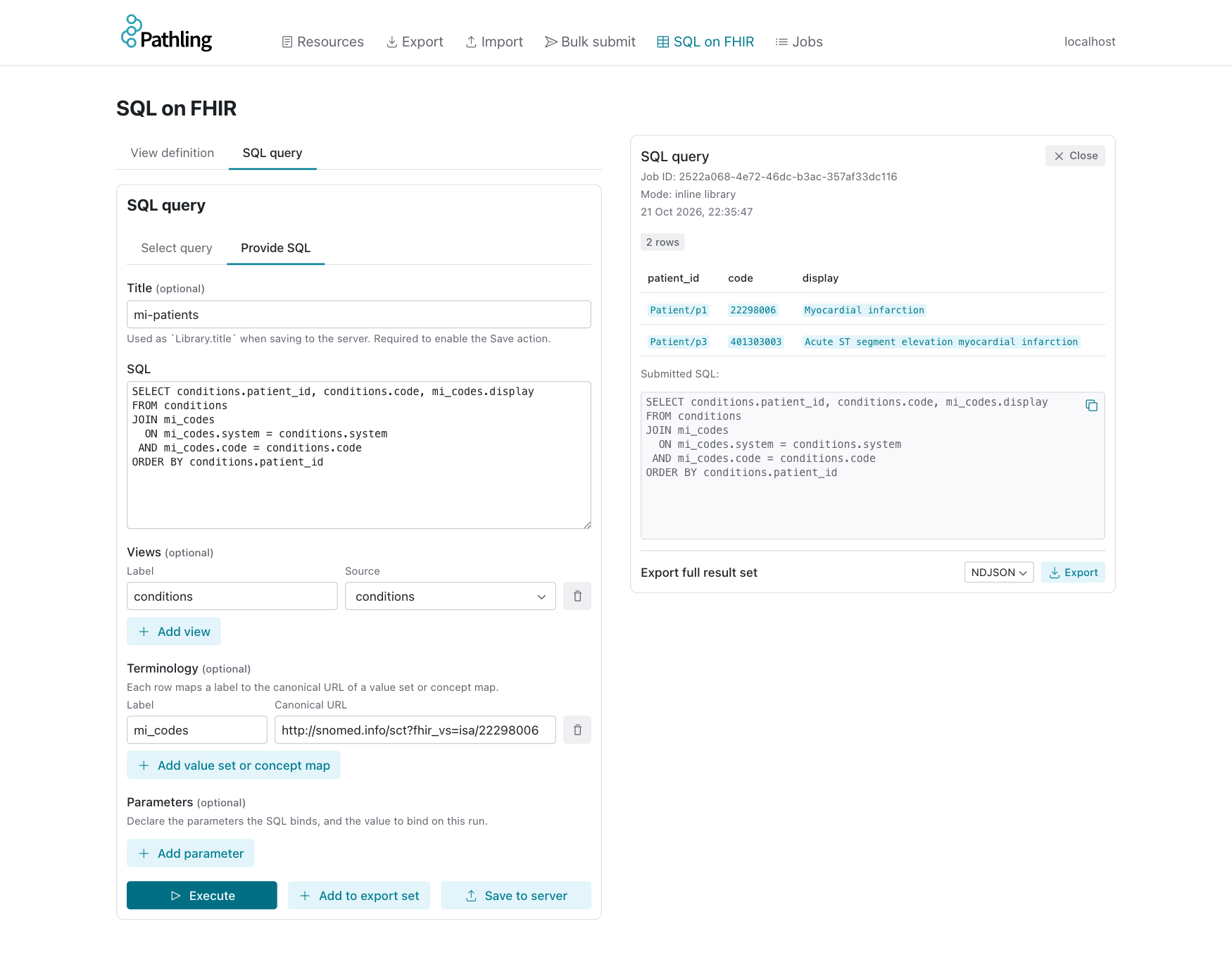

The SQL query form in the admin UI can now bind a label to a value set or concept map, alongside the views:

Read the docs: terminology in SQL.

Where the content comes from

The content of a value set or concept map comes from wherever Pathling is configured to get its terminology:

• A terminology server - value sets are expanded using ValueSet/$expand, and concept maps are found by searching the server's ConceptMap resources.
• The local terminology store - value sets are computed from the imported content, including SNOMED CT ECL and VCL implicit value sets. Concept maps come from imported ConceptMap resources, and from the SNOMED CT implicit maps for the four association reference sets (POSSIBLY EQUIVALENT TO, REPLACED BY, SAME AS and ALTERNATIVE).
• JSON - a ValueSet or ConceptMap supplied directly, through the _from_json methods in the libraries or the context parameter on the server. A ValueSet with an expansion is used as-is, so this works without any terminology service at all.

Things to be aware of

The tables are a complement to the terminology functions, not a replacement. The content of each table is held in memory before the query runs, so its size is capped at 100,000 members or mappings by default. The cap can be raised (max_members and max_mappings in Python and R, and pathling.sqlQuery.valueSetMaxMembers and pathling.sqlQuery.conceptMapMaxMappings on the server), but a value set such as all the descendants of "Clinical finding" is better served by memberOf, which never needs to expand it.

A value set or concept map that cannot be resolved is an error, never an empty table. A query that silently returns no rows because the terminology was missing is a hard problem to spot, so we have tried to make sure that this can't happen. The same goes for a concept map with content that a flat table cannot represent, such as targets that carry dependsOn or product.

We also recommend pinning the version of each value set and concept map where you can, e.g. http://example.org/ValueSet/cardiovascular-disease|2026. An unpinned reference can return different content each time the artefact is republished, and two runs of the same query can then return different results.

Other changes

Pathling 10.0.0 also includes:

• Breaking: memberOf now follows the FHIR definition. It returns empty for input with more than one item, accepts code and string input, and returns empty (or null from the member_of function) where membership cannot be determined.
• Breaking: getReferenceKey() now returns empty for absolute URLs, contained references and URNs, and strips the /_history version from a versioned reference.
• Breaking: The local terminology store format has changed. A store written by 9.9.0 is migrated in place when it is first opened, after which 9.9.0 can no longer read it.
• Local terminology mode now handles large concept maps within bounded memory, supports SNOMED CT simple map reference sets in translate, and verifies FHIR packages against the checksum published by the registry.
• New startsWith(), endsWith() and contains() FHIRPath functions, contributed by @chgl.

Server 3.1.0 also adds support for external tables. An operator can configure a read-only Delta or Parquet table outside the warehouse, which a SQLQuery or SQLView can then declare as a dependency and join to its FHIR views.

The full list of changes is in the release notes for 10.0.0 and server 3.1.0.

Getting started

pip install pathling

docker run -p 8080:8080 ghcr.io/aehrc/pathling:3

Hopefully this makes it easier to write terminology-aware queries that can be shared and run on any SQL on FHIR implementation. Let us know what you think!
